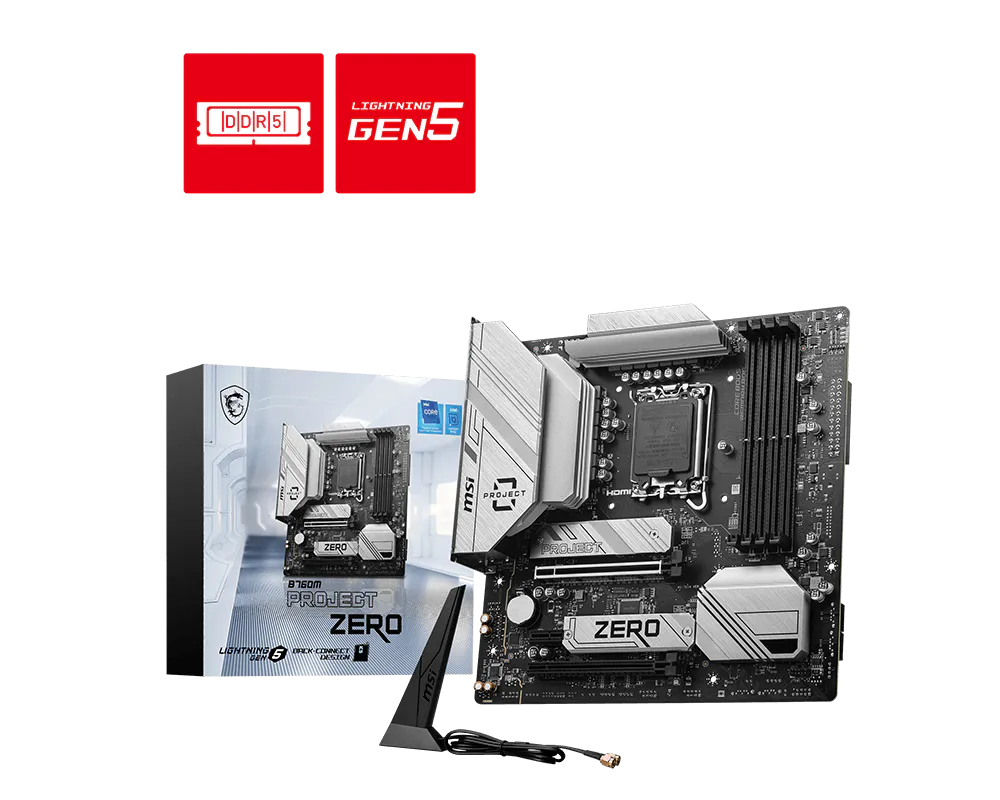

MSI B760M PROJECT ZERO — barcha konnektorlari plataning orqa tomoniga chiqarilgan Micro-ATX ona plata. Kabellar ko'rinmaydi, yig'ilma juda ozoda chiqadi (mos keladigan korpus kerak). Intel B760 chipseti, 4 ta DDR5 (256 GB gacha), PCIe 5.0 x16, 2 ta M.2 NVMe, Wi-Fi 6E va 2.5 Gb/s tarmoq. Toshkent va butun O'zbekiston bo'ylab yetkazib berish.
Model
MSI B760M PROJECT ZERO
Soket
LGA1700
Protsessorlar
Intel Core 12/13/14-avlod, Pentium Gold, Celeron
Chipset
Intel B760
Xotira
4 x DDR5, 256 GB gacha, 7800 MHz gacha (OC), ikki kanalli
Video chiqish
1 x HDMI (4K 60Hz), 1 x DisplayPort 1.4 (4K 60Hz)
Kengaytma slotlari
1 x PCIe 5.0 x16 (protsessordan), 1 x PCIe 3.0 x1 (chipsetdan), 1 x PCIe 4.0 x4 (chipsetdan)
M.2 slotlari
2 x M.2: PCIe 4.0 x4 (protsessordan); PCIe 4.0 x4 / SATA rejimi (chipsetdan)
SATA
4 x SATA 6 Gb/s
RAID
RAID 0, RAID 1, RAID 5 va RAID 10 (SATA)
Tarmoq (LAN)
Realtek 2.5 Gb/s
Simsiz aloqa
Intel Wi-Fi 6E + Bluetooth 5.3
Audio
Realtek ALC897, 7.1 kanal
USB
orqada 4 x USB 2.0, 3 x USB 10 Gb/s Type-A, 1 x USB 20 Gb/s Type-C; oldida 4 x USB 2.0, 2 x USB 5 Gb/s Type-A, 1 x USB 10 Gb/s Type-C
Form-faktor
Micro-ATX (orqa tomondan ulanadigan, back-connect)
